Butt Weld Fittings

Butt Weld Fittings

M.E.G.A. stands out internationally for its advanced engineering in butt weld branch outlet fittings, offering a wide range of solutions designed for the most demanding industries.

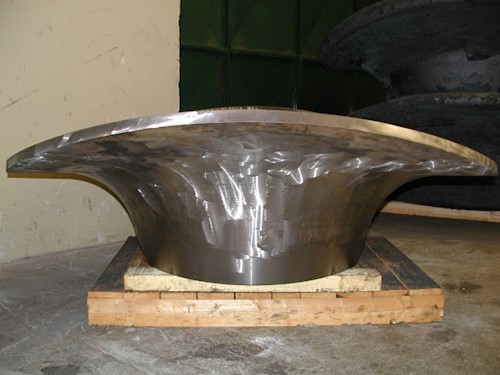

Inserts Megalets: butt weld fittings for critical applications

The inserts Megalets are self-reinforced, contoured insert branch connections, designed for butt weld installation on header pipes. Shaped to comply with figure 328.5.4E or K328.5.4 of ASME B31.3, they provide superior performance under high-pressure and high-fatigue conditions.

Available in Type I and Type II configurations, Megalets ensure:

  • Low Stress Intensification Factor (SIF) for enhanced fatigue resistance.
  • 100% X-Ray and ultrasonic weld examination for maximum installation reliability.
  • Butt-welded, socket-welded, threaded, and flanged options for versatile application.
  • Design validation through Finite Element Analysis (FEA) and proof tests.
  • Construction in all steel grades, nickel alloys, and titanium to meet diverse operational requirements.



Advanced design and manufacturing

M.E.G.A. leverages cutting-edge CAD/CAM systems and FEA for the precise engineering of Megalets. This ensures optimal geometry that allows easy installation and complete weld inspection, making them ideal for critical sectors such as Oil & Gas, Petrochemical, Offshore, and Power Plants.

Each Megalet is forged in-house using M.E.G.A.’s state-of-the-art facilities, ensuring full traceability and adherence to strict quality standards. The process includes non-destructive testing (PT, UT, MT) and certified documentation, guaranteeing products of exceptional quality.

Applications of M.E.G.A. butt weld branch outlet fittings

The butt weld fittings range from M.E.G.A. covers solutions for:

  • High-pressure pipelines
  • Subsea installations
  • Petrochemical plants
  • Nuclear power stations
  • Offshore platforms
  • Wind power installations

Their versatility and robust design make them suitable for use in systems subjected to severe flow-induced or acoustic-induced vibration (FIV/AIV).

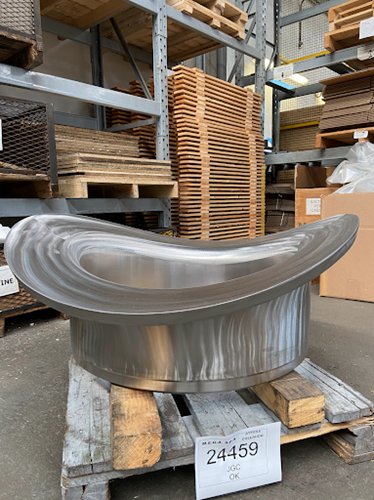

butt weld pipe fittings



Unmatched custom design & production

M.E.G.A. offers full design flexibility with no limitations, creating custom fittings from all steel types based on customer specifications. This makes it the go-to partner for clients facing complex engineering challenges. Its material range spans from carbon steels to super duplex, SMO F44, nickel alloys, and titanium.

  • Tailor-made fittings with no design limits
  • Extensive material compatibility
  • Ideal for high-value, complex projects

M.E.G.A. can manufacture large components up to 80 inches. Seamless pipe customization is available for size, grade, and finish. Customers collaborate closely with expert engineers to define their precise needs.



Integrated internal production for superior quality

M.E.G.A. controls its full production cycle in-house—from forging to final certification—ensuring superior quality and fast turnaround. This vertical integration allows for high flexibility, reduced lead times, and strict quality standards.

  • 100% internal production control
  • Faster project delivery and reliable supply
  • High customization flexibility
  • Key internal processes include:
  • Non-Destructive Testing (NDE): Accredited lab offering PT, UT, MT, and outsourced RX.
  • Heat Treatment: In-house, certified to Norsok M-650 and ASTM A991, handling parts from 1 kg to 20 tons.
  • Mechanical Machining: Hundreds of machines for turning, milling, and boring, adaptable to any product.
  • Finishing: Various surface treatments to prevent corrosion and extend lifespan.
  • Documentation: Full technical documentation and traceability provided.



butt weld fittings production



Conclusion

M.E.G.A. stands as a premier manufacturer of butt weld fittings, distinguished by its profound engineering expertise, comprehensive in-house production capabilities, and unwavering commitment to international quality standards. The company's vertically integrated processes, from design and forging to advanced testing and finishing, ensure superior quality control, reduced lead times, and enhanced flexibility for custom solutions. This integrated approach positions M.E.G.A. as a reliable "one-stop-shop" for complex industrial piping needs, simplifying procurement and ensuring consistent product excellence.

Partner with M.E.G.A. for your next critical project. Leverage unparalleled expertise in butt weld fittings and comprehensive in-house capabilities. Contact us today for a custom quote or to discuss specific requirements.
