Chemical Pipe Fittings

At M.E.G.A., every project counts, and we do understand the need for differentiation you may have. This is the reason we want to accompany you in every stage of your production cycle, from forging to testing.

Our comprehensive range of chemical pipe fittings and inserts is conceived to meet the most stringent requirements to guarantee superior quality standards and the maximum level of safety of our fittings, tubes, and valves.

On this page, we will delve into:

• Chemical resistant pipe fittings
• The main features of chemical pipe fittings
• Critical materials for chemical resistance
• Safety and inspection
• Applications
• The strategic advantage of M.E.G.A.

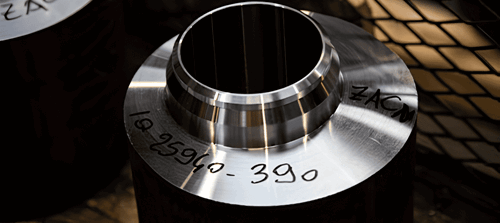

Chemical resistant pipe fittings

In chemical plants, pipe fittings are governed by the ASME B31.3 (Process Piping) code.1 Because these facilities deal with corrosive, high-pressure, and high-temperature fluids, the fittings are significantly more robust than those found in residential plumbing.

Common types of fittings

These fittings perform the same basic functions as standard ones but are built to industrial standards:

• Elbows (45°, 90°): used to change the direction of flow. Long-radius elbows are preferred to reduce friction and erosion.
• Tees (Equal and Reducing): used to create branch lines.
• Reducers (concentric and eccentric): used to change the pipe diameter. Eccentric reducers are critical in horizontal suction lines to prevent air pockets.
• Caps and plugs: Used to seal the ends of a pipe or a branch.

Specialized Chemical Plant Connections

The way fittings are joined is a major safety factor in a chemical plant:

• Flanges: the most common connection for equipment (pumps, valves). They allow for easy disassembly and maintenance. Common types include Weld Neck (for high pressure) and Slip-On (for low pressure).
• Butt-weld fittings: these are welded directly to the pipe end-to-end. They provide a permanent, leak-proof, and high-strength connection ideal for hazardous chemicals.
• Socket-weld fittings: used for small-bore piping (usually 2 inches and under). The pipe is inserted into a recessed area of the fitting and then welded.
• Threaded fittings: restricted to non-hazardous, low-pressure utility lines (like air or water) because they are prone to leaks under vibration.

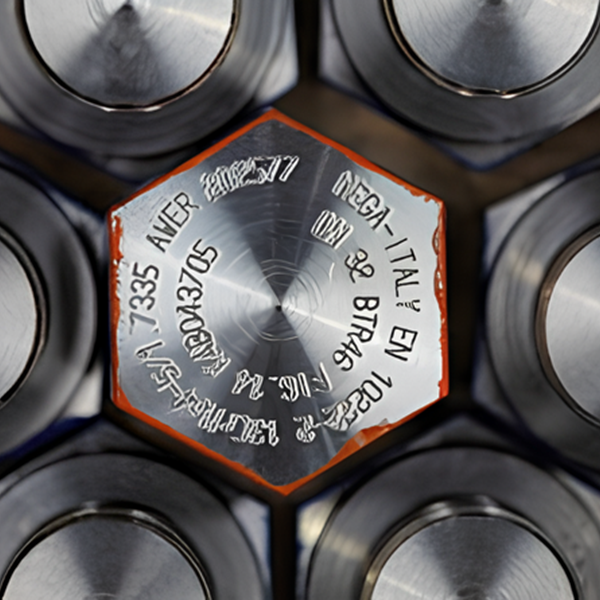

The main features of chemical pipe fittings

In order to provide you with outstanding performance at all times, M.E.G.A. manufactures specific stainless steel, duplex, and super duplex chemical pipe fittings. These components will help you in your everyday work.

They are multifaceted and dependable which will ensure high accuracy and resistance in every application. M.E.G.A. can provide you with standard or special fittings based on your demands. Every chemical pipe fitting we made can be customized to better suit your needs.

Our chemical fittings are designed for the chemical industry, and they are:

• easy to integrate with existing systems. This will allow you to reach consistency in flow rates without disrupting any ongoing chemical process.
• versatile, which means they are highly compatible with a broad range of chemical products.
• precise in regulating varying pressure levels without changing structural solidity.
• resistant to corrosion and abrasion, a crucial characteristic in the chemical industry.
• easy to install due to a fast setup which reduces downtime.

Critical materials for chemical resistance

Material selection is the "make or break" factor in a chemical plant.

Safety and inspection

Because a failure can lead to a toxic spill or explosion, chemical plant fittings undergo rigorous testing:

• Material Test Reports (MTRs): documents that prove the fitting is made of the exact alloy specified.
• Non-Destructive Testing (NDT): includes X-rays of welds (Radiography), Dye Penetrant, or Magnetic Particle testing to find hidden cracks.

Discover also our heat treatment and welding services.

Would you like more information about our chemical pipe fittings?

Contact our team

Applications

The chemical industry features a series of applications that may need specific pipe fittings. Here you can find the various sectors where chemical pipe fittings are used.

• Heat transfer: when fluids and refrigerants are used for temperature control in different chemical reactions.
• Evaporation and drying: chemical pipe fittings and valves are crucial in drying material.
• Distillation process: when a chemical liquid blend needs to be selectively heated and cooled.
• Mass separation: chemical pipe fittings are designed to transport mass separation agents that can divide materials into distinct components.
• Mechanical separation: in this case, fittings are made to channel liquids for mechanically divide substances.
• Mixing: integrating different materials following a precise dosage in order to produce a more homogenous product.

The strategic advantage of M.E.G.A.

Choosing M.E.G.A. means partnering with a global leader that places quality and excellence at the core of every operation, ensuring certified products and impeccable service throughout every production stage. Through a constant drive for technological innovation and a deep sense of responsibility, we tackle the most complex challenges of the energy and chemical sectors with maximum efficiency. Ultimately, our unique value proposition lies in our human capital: a culture built on teamwork and passion that transforms over fifty years of expertise into tailored, reliable, and cutting-edge solutions for every client.

Discover the extreme level of customization only M.E.G.A. chemical pipe fittings can provide.
