Piggable Wye Fittings for Offshore and Subsea Pipelines
Piggable wye fittings are specialized pipeline components engineered to ensure the safe and uninterrupted passage of pigs through complex systems featuring lateral connections. M.E.G.A., established in 1962, designs and manufactures custom piggable wyes for high-stakes offshore, subsea, and onshore applications. These fittings are essential for maintaining operational integrity through regular inspection, cleaning, and maintenance.
Designed to handle extreme pressures and severe operating conditions, M.E.G.A. piggable wye fittings are fully customized to project specifications and validated through advanced Finite Element Analysis (FEA).
What is a piggable wye?
A piggable wye is a Y-shaped fitting featuring two inlets—one for each converging pipeline—and a single outlet that merges the flow. The internal geometry is precision-engineered to allow inspection and cleaning pigs to transition smoothly between lines. Typically, the two inlet lines converge at an intersecting angle of 30°, which optimizes both flow dynamics and pig movement. While pigging a straight pipeline is a standard procedure, lateral tie-in connections require specialized hardware to prevent the tool from becoming stuck.
Engineering and design capabilities
Every piggable wye produced by M.E.G.A. is engineered-to-order by qualified specialists. Our design process integrates critical pipeline data, including:
- Pipeline dimensions.
- Internal pressure and temperature requirements.
- External stress and installation loads.
- Specified corrosion allowance.

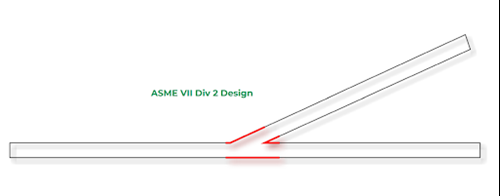

M.E.G.A. utilizes 3D modeling and Finite Element Analysis (FEA) to validate designs against international standards, such as:
- ASME VIII Division 1 and Division 2.
- ASME B31.4 and ASME B31.8.
- DNV OS-F101 and DNV RP-112.

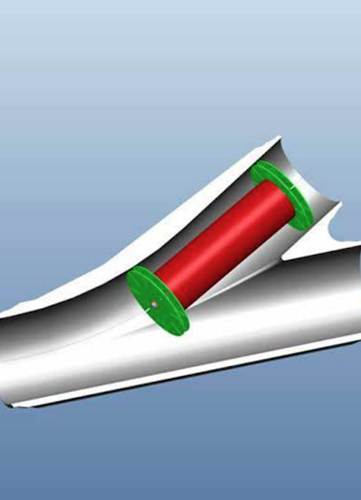

Additionally, we perform dynamic system simulations to determine the optimal length for In-Line Inspection (ILI) tool modules.
Manufacturing process
M.E.G.A. manages the entire manufacturing lifecycle of piggable wye fittings in-house, ensuring total quality control.
- machining of tapers
- NDE (ut, mt, pt as applicable)
- internal cra overlay (optional)
- welding of pup pieces
- hydrostatic test
- caps cutting and final beveling
- packing
Key features of M.E.G.A. piggable wyes
- Bi-directional Piggability: Optimized for versatile operations.
- Custom Geometry: Available in both symmetrical and asymmetrical designs.
- Heavy-Duty Capacity: Capable of manufacturing components weighing up to 40 tons.
- Advanced Materials: Available in Carbon Steels, Duplex/Super Duplex, Nickel Alloys, and Titanium.
- Structural Integrity: Features fully machined (not welded) lifting lugs for enhanced safety.
Applications of piggable wyes
M.E.G.A. piggable wyes are purpose-built for high-integrity environments where maintenance access is difficult and reliability is paramount. Typical applications include:
- Subsea tie-in connections: Used to merge lateral lines into a main trunkline while maintaining full piggability.
- Offshore oil & gas projects: Specifically designed to withstand the external loads and pressures of deepwater environments.
- Submarine gas pipelines: Proven through major projects such as the Towngas Shenzhen to Tai Po twin pipeline.
- Energy sector infrastructure: Applied in power plants and nuclear projects where specialized forged fittings are required.
Why partner with M.E.G.A.?
With over 60 years of expertise, M.E.G.A. is a global leader in supplying forged solutions for the most demanding subsea and offshore environments. Our integrated approach—from FEA design to final testing—guarantees a high-performance piggable wye that meets the rigorous safety standards of the oil and gas industry.
